I found this great article about how to setup a Stored Procedure To backup you databases in Express 2005
One problem with SQL Server 2005 Express is that it does not offer a way to schedule backup jobs for you databases.
There are two components to this; the first is the backup command and the second is the scheduling needed to run the backups.
There are a few things that we need to setup. The first is to create a stored procedure that allows us to dynamically generate the backup file name as well as what type of backup to run Full, Differential or Transaction Log backup. The default for this stored procedure is to create the backups in the “C:\Backup” folder. This can be changed to any folder you like.
The following stored procedure should be created in the master database. This is just one way of handling this. There are several other options and enhancements that can be made.
— Author: Edgewood Solutions
— Create date: 2007-02-07
— Description: Backup Database
— Parameter1: databaseName
— Parameter2: backupType F=full, D=differential, L=log
CREATE PROCEDURE [dbo].[sp_BackupDatabase]
@databaseName sysname, @backupType CHAR(1)
SET NOCOUNT ON;DECLARE @sqlCommand NVARCHAR(1000)
DECLARE @dateTime NVARCHAR(20)
SELECT @dateTime = REPLACE(CONVERT(VARCHAR, GETDATE(),111),’/’,”) +
IF @backupType = ‘F’
IF @backupType = ‘D’
IF @backupType = ‘L’
EXECUTE sp_executesql @sqlCommand
The second part of this is to create a SQLCMD file to run the backup commands. Here is a simple SQLCMD file that backups databases master, model and msdb.
This file gets saved as backup.sql and for our purposes this is created in the “C:\Backup” folder, but again this could be put anywhere.
|sp_BackupDatabase ‘master’, ‘F’|
sp_BackupDatabase ‘model’, ‘F’
sp_BackupDatabase ‘msdb’, ‘F’
Included with the Windows operating system is a the ability to setup and run scheduled tasks. This is generally not used for SQL Server environments, because SQL Server Agent is so robust and gives you a lot more control and options for setting up re-occurring jobs. With SQL Server 2005 Express the only choice is to set a scheduled task at the operating system level or look for some third party tool.

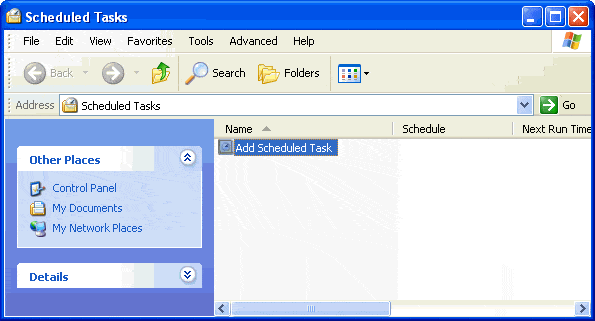

To setup a scheduled task you need to open the folder where you can create a new scheduled task. This can be found under Accessories -> System Tools -> Scheduled Tasks or under Control Panel.

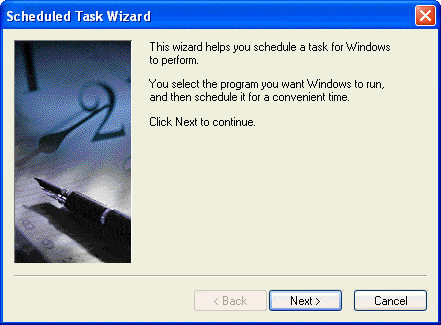

The first thing to do is to click on “Add Scheduled Task” and the following wizard will run.

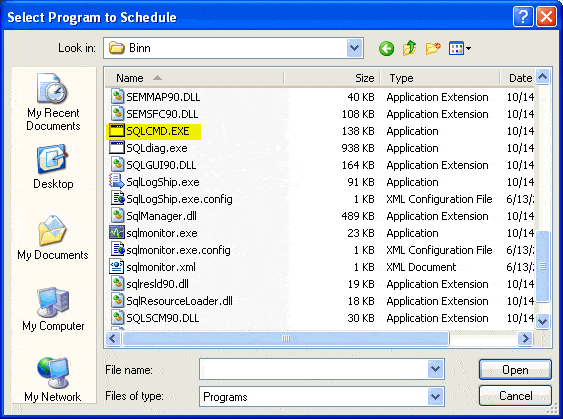

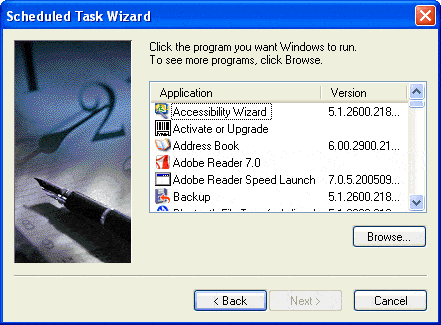

Select the application that you want to run. For our purposes we will be using SQLCMD.EXE. In order to find SQLCMD.EXE you will need to click on the Browse… button.
You should be able to find this in the following directory “C:\Program Files\Microsoft SQL Server\90\Tools\Binn”.

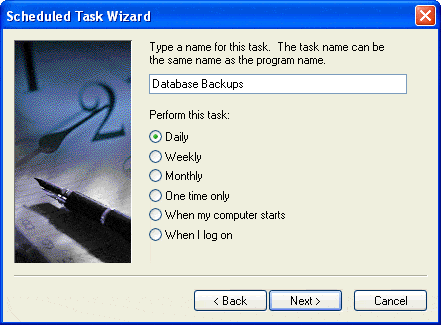

Give the scheduled task a name and specify when to perform the task.

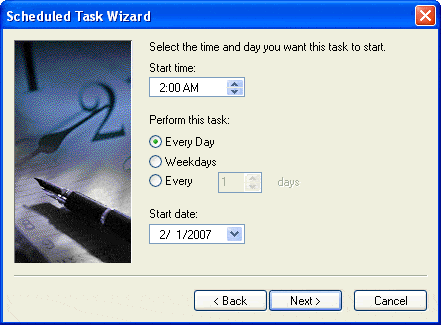

Specify the time that this should be run.

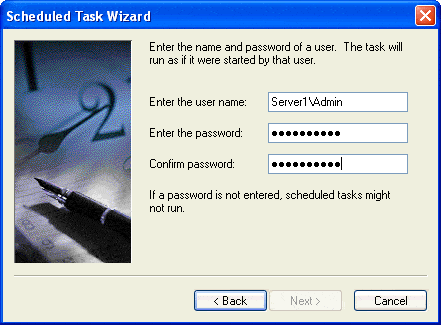

Provide the credentials for the account that will run this task.

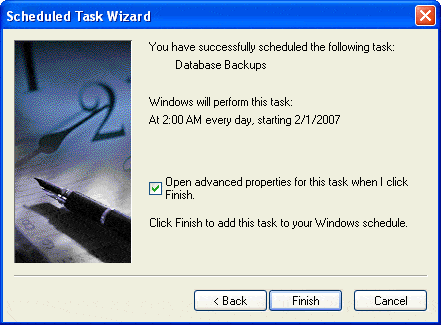

Finish and save the task. One thing you want to do is click on the “Open advanced properties” so you can edit the command.

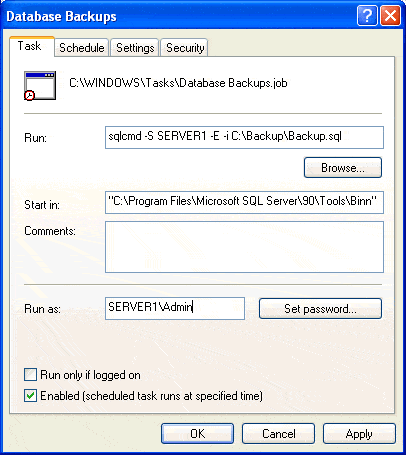

Below is the advanced properties screen. You will need to change the “Run” command to the following:
sqlcmd -S serverName -E -i C:\Backup\Backup.sql
This is broken down as follows:
- -S (this specifies the server\instance name for SQL Server)
- serverName (this is the server\instance name for SQL Server)
- -E (this allows you to make a trusted connection)
- -i (this specifies the input command file)
- C:\Backup\Backup.sql (this is the file that we created above with the command steps)
That should do it. The scheduled task should now be setup.

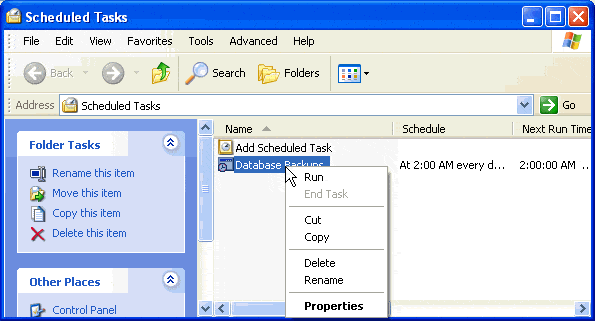

If you want to run the command now to make sure it works go back to the Scheduled Tasks view and right click on the task and select “Run”.
